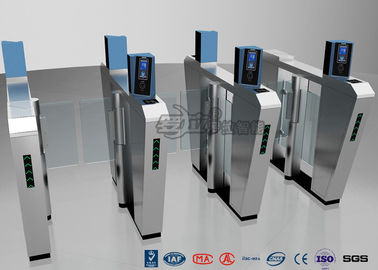

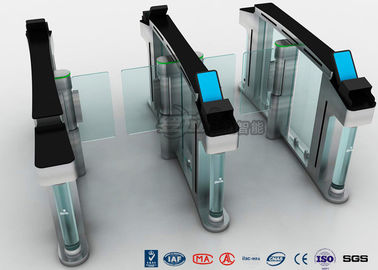

Name: Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile
Brand: RONA
SKU: Customized
Rating: 4.8 (117 reviews)

বাড়ি পণ্য টার্নস্টাইল সিকিউরিটি সিস্টেম

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

পণ্যের বিবরণ:

উৎপত্তি স্থল:	China
পরিচিতিমুলক নাম:	RONA
সাক্ষ্যদান:	CE / ISO9001
মডেল নম্বার:	Customized

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	1 Lane
মূল্য:	negotiation
প্যাকেজিং বিবরণ:	carton and wooden packing
ডেলিভারি সময়:	7-15 দিনের
পরিশোধের শর্ত:	T/T,
যোগানের ক্ষমতা:	2000 ইউনিট প্রতি মাসে

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

উপকরণ:	304 # স্টেইনলেস স্টিল	শেষ:	ব্রাশ করা পৃষ্ঠ / মসৃণতা পৃষ্ঠ
পাওয়ার ভোল্টেজ:	AC220V ± 10%, 50Hz ± 10%	ড্রাইভার মোটর:	ডিসি সার্ভো মোটর
পাসিং গতি:	40 জন / মিনিট	উত্তরণ প্রশস্ত:	600mm ~ 1200mm
অপারেশন তাপমাত্রা::	-10 ℃ ~ 70 ℃	যোগাযোগ বন্দর:	আরএস 232 / আরএস485
লক্ষণীয় করা:	security turnstiles , barrier turnstile

Waist Height Turnstile Security Systems , Face Recognition Speed Fastlane Turnstile

PRODUCT DESCRIPTIONS:

The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.

The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.

SPECIFICATIONS:

Framework	304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Thickness of ply	1.7mm
Finish	brushed surface, polishing surface
Shell's size (LWH)	Customized
Swing arm material	Tempered glass or Acrylic (optional)
Stretching out swing length	260mm~600mm
The inductive card reader dimension	equipped with the standard mounting brackets or tailor.
Machine center	Germany technological motor
Power voltage	AC220V±10%, 50Hz±10%
Driver motor	DC36 servo motor
Main-board voltage	12V DC
In-built Infrared	6 pairs/passageway
Passing speed in normally open mode	50 persons/min
Passing speed in normally closed mode	40 persons/min
Passage Width	600mm ~1200mm
Swing arm transmission angle	180°
Swinging direction	unidirectional or bi-directional
Opening / closing time	0.1 seconds
The time required to running state after power on	3 seconds
Automatic reset time after the failure	1 seconds
Mean time to failure	min. 5 000 000
Operation temperature	-10℃ ~ +70℃
Relative humidity	less than 95% not condensed
Working Environment	Indoor/Outdoor (with rain-tent cover)
Input port	relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port	RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet

APPLICATIONS:

Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.

TECHNICAL DETAILS:

1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2. With normally open & normally closed working mode

3. Real time failure self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.

4. With direction indication, guiding passenger to entry and exit.

5. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000. (Optional)

6. Sound/light (Light is optional) alarm indication function, preventing illegal entry or irregular passing.

7. After the system power is cut off, the plate barrier starts the standby power to withdraw the barrier, so that the passage is ensured to be smooth and to divert the flow of passenger timely.

8. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

9. The treatment mode in emergency or in special conditions.

10. Super strong combination capability, with the combined application of products of different passage types and series, not affecting the system performance.

11. Strong system expending capability, available to add new product at any time.

12. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection.

FACTORY:
Bar Code Ticketing System Access Control Tripod Turnstile Gate of 304 stainless steel

EXHIBITION:

CUSTOMERS:

CONTACT US:
Shenzhen Rona Intelligent Technology Co., Ltd is a Chinese manufacturing firm located in Shenzhen. When you are ready to find out how we can service your needs, use the information listed here to reach our sales and service office. Monday to Friday: 8:30am - 6:00pm (UTC/GMT +8). We look forward to hearing from you.

Head office: A603, 6F, Yousong Technology Building, E Ring 1st Rd, Loghua Town, Bao'an, Shenzhen, China, 518109
Factory: 3F&4F, Building C, Longlian Industrial Zone, Zhonghua Rd, Longhuan Town, Bao'an, Shenzhen, China, 518109

Contact Person: Ms. Sophia Wey
Cel: +86-15986833719
Email: export@szrona.cn
Skype: rona.export
Tel: +86-755-88853586 ext 8039
Fax: +86-755-88853586 ext 8002
